THE WORLD’S MOST ADVANCED
HYDROGEN PERMEABILITY ANALYZER

FOR HYDROGEN BARRIER MATERIALS

ACCURATE | RELIABLE | ASTM-COMPLIANT | HIGH-SENSITIVITY

Made for HYDROGEN STORAGE Industries
Ultra-sensitive detection up to 10^-15 mol/m²•s•Pa
Test pressures upto 700 bar
AI-powered software accelerates outcomes beyond conventional capabilities

DOWNLOAD BROCHURE

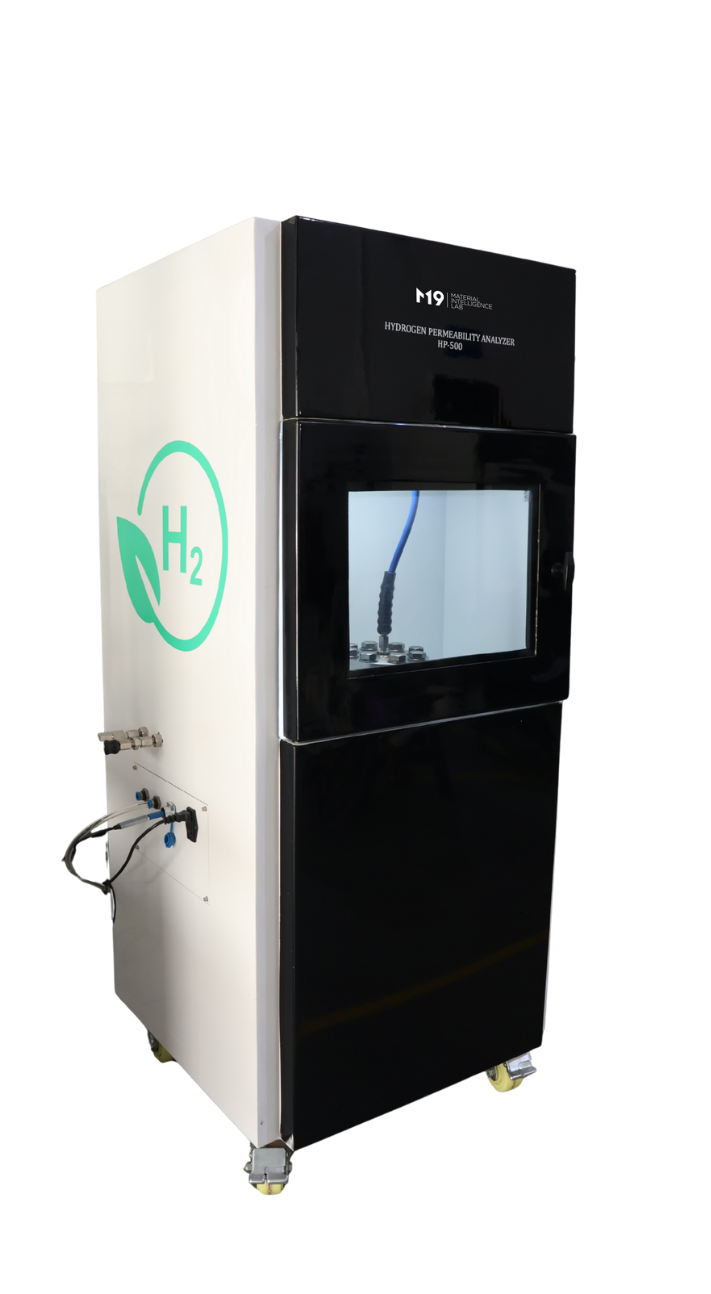

Hydrogen Permeability Analyzer instrument

10+ YEARS OF TRUST

Decades of M19 expertise delivering scientific instruments and lab services for the hydrogen economy.

15+ INDUSTRIES

Hydrogen storage, clean energy, aerospace, automotive, fuel cells, pipelines, material research, and more.

24x7 After Sales Service

Priority response and spare parts assurance to minimize downtime risk.

EXPERIENCE THE M19 HYDROGEN PERMEABILITY ANALYZER (HP-500)

The M19 Hydrogen Permeability Analyzer (HP-500) is a cutting-edge instrument designed for precise measurement of hydrogen gas permeability in coated & uncoated metallic, polymeric (Type IV), and composite Aluminum (Type III) materials.

With High-Precision Sensors, Automated Control Systems, Advanced Data Analytics, and a High-Vacuum System, this analyzer delivers the most reliable results for hydrogen barrier coatings and materials under real-world high-pressure conditions.

PRINCIPLE

Differential Pressure Method: The specimen creates a sealed barrier between two chambers. Hydrogen is introduced at high pressure on one side while the other side is under vacuum. Permeation is measured by monitoring pressure rise in the low-pressure chamber.

HIGH-PRECISION HP-500

Ultra-sensitive detection up to 10^-15 mol/m²•s•Pa
Test pressures upto 700 bar
AI-powered software with realtime monitoring & cloud integration
Compliant with global standards (ASTM, ISO, CSA/ANSI)

TEST STANDARDS

CSA/ANSI CHMC1:2023
ASTM D1434
ISO 15105-1
CSA/ANSI CHMC2:2019

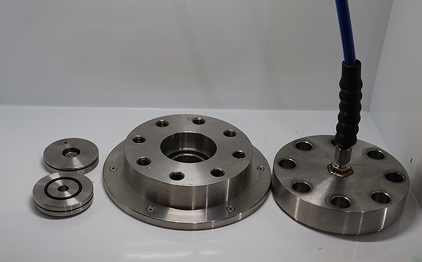

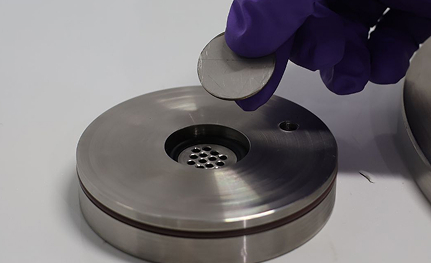

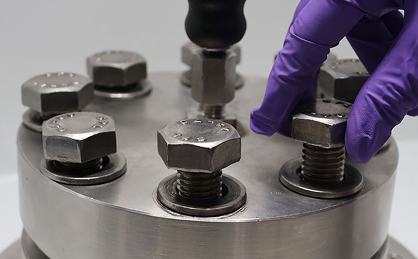

Hydrogen gas permeability measurement cell

KEY FEATURES

Advanced Coating Evaluation: Analyzes composite, metal, hybrid, and polymeric barrier materials
Customizable Testing Conditions: Wide range of temperature, pressure (35–500 bar), and sample thickness (up to 5 mm)
Automated Data Acquisition & Real-Time Monitoring: AI-powered software for trend analysis and report generation
High-Vacuum System (10^-3 Torr): Ensures minimal background interference

Hydrogen diffusion and transmission rate testing

YOUR ASSURANCE MATTERS

High-accuracy, low-detection limit for trace-level permeability
Fast and efficient testing reduces analysis time compared to conventional methods
Scalable & customizable to meet specific industrial or R&D requirements
Real-time analysis & cloud integration with AI-driven analytics
Full compliance with global standards (ASTM, ISO, CSA/ ANSI)
2-Year Extended Warranty with spare parts assurance

TECHNICAL SPECIFICATIONS

Test Method	:	Differential Pressure Method
Test Gas	:	Hydrogen
Test Range	:	0.001 ~ 100 cm³/m²·24h·atm
Vacuum Range of Test Chamber	:	<1 Pa
Vacuum Resolution	:	0.01 Pa
Sample Size	:	Ø 10 mm to 78 mm
Sample Thickness	:	Up to 5 mm
Test Pressure Range	:	35–500 bar (up to 700 bar)

WHY CHOOSE THE HP-500?

Industry-Leading Sensitivity & Accuracy Customizable Testing Conditions for Versatile Applications AI-Powered
Data Analysis & Report Generation Reliable After-Sales Support & Training

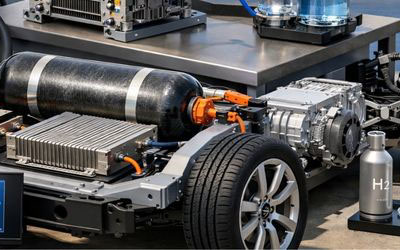

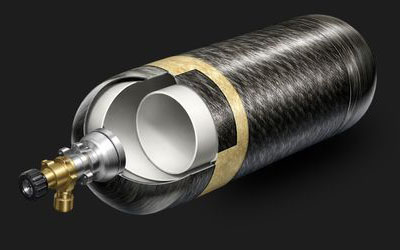

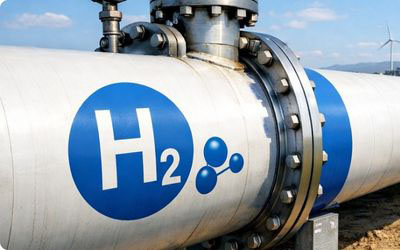

APPLICATIONS
